Product Details:
|
| Length: | 160mm-230mm | Width: | 60mm |
|---|---|---|---|
| Thickness: | 4mm | Material: | Round Tube |
| Tolerance: | ±0.1mm | Serve: | OEM Customization |
| Name: | CNC Tube Laser Cutting | Shape: | OEM Customization |
| Highlight: | OEM CNC Tube Laser Cutting,round CNC Tube Laser Cutting,4mm rolled and welded steel pipe |
||
Custom Laser Cutting Tubing Services Metal Tubing Processing Tubing Cutting Services
Tube Laser Cutting Services
Laser cutting tubes is an efficient and flexible method of processing metal tubes that is now used in all industries. Laser tube cutting machines are designed to cut hole profiles and end profiles (miter or cod mouth) on round, square, oval, triangular and other special cross-section metal tubes. Precise laser profiling of highly complex shapes inside tubes is possible
Specification
| Part Name | laser cutting parts 3d tube laser cutting service cnc laser tube cutting stainless steel slotted aluminum tube |
| Material | Aluminum, mild steel, carbon steel, stainless steel, etc. |
| manufacturing process | Laser Cutting - Bending - Welding - Grinding - Powder Coating - Packaging |
| tolerance | ±0.01mm - ±0.1mm |
| surface treatment | Anodizing, Brushing, Polishing, Powder Coating |
| Quality Control | Comprehensive 100% |
| Service type | OEM parts customization service |
| Package | Bubble bags and cartons, if needed, make pallets , according to your needs |
Benefits of Laser Tube Cutting
Tube laser cutting eliminates all traditional marking, sawing, drilling, deburring and forming operations performed in traditional tube processing. Also eliminates traditional fixed costs of punches, jigs, tools and fixtures
The tube laser machine is CNC controlled and offline programmed by 3D CADCAM software. Fully automatic loading of pipe raw materials up to 12 meters long, automatic handling and automatic unloading, the process is highly productive.
Minimal burrs or debris on
No coolant (no cutting fluid residue on parts)
Accurate tolerances (repeatability)
Multiple operations can be combined into one loop
Small to large production runs
Save material by nesting multiple parts into the length of one tube
Ability to run unattended
Tube laser capacity
Tubes for handling raw materials up to 12 meters long
Laser cut tubes in round, square, rectangular, flat oval, triangular and special cross-sections
Pipe diameters from 10mm to 500mm to 20mm wall thickness
Automate tube handling to improve high-volume production efficiency

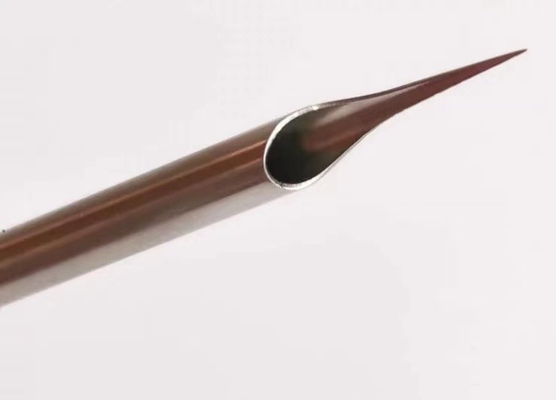

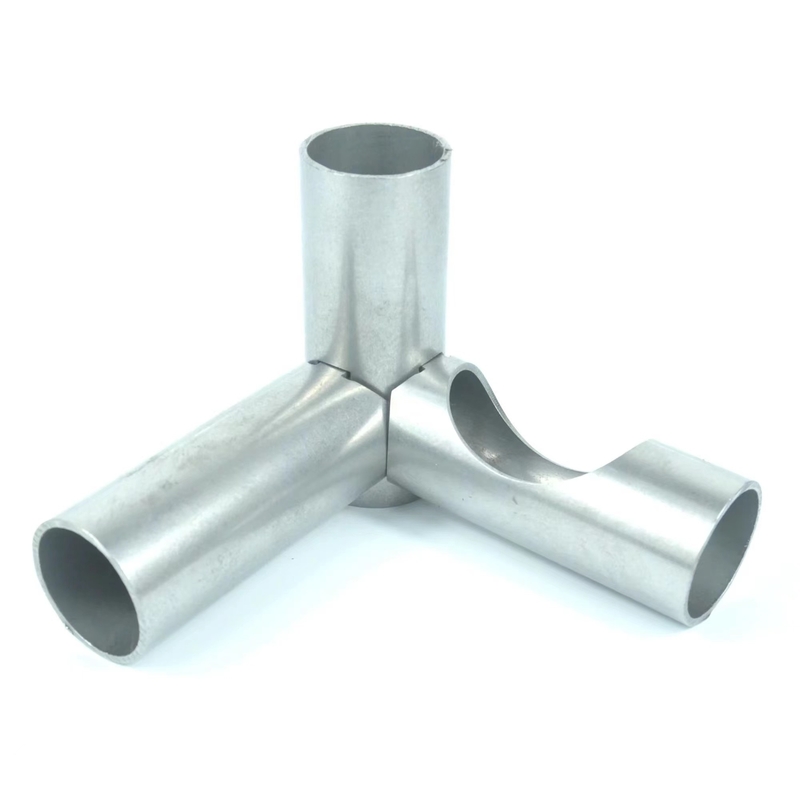

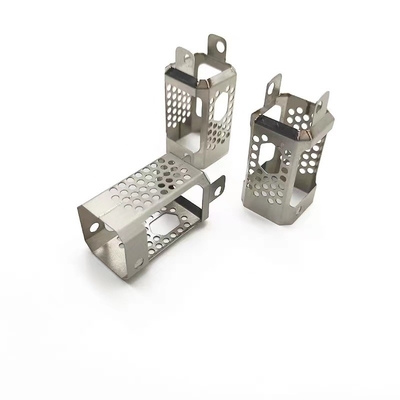

Product display
