Product Details:
|
| Length: | 100mm-500mm | Diameter: | 20mm-100mm |
|---|---|---|---|
| Thickness: | 0.5mm-2mm | Tolerance: | ±0.1mm |
| Serve: | OEM Customization | Name: | CNC Tube Laser Cutting |
| Shape: | OEM Customization | Material: | Stainless Steel |
| High Light: | 100mm custom stainless steel tube bending,4140 custom stainless steel tube bending,cnc pipe laser machine cutting |
||
OEM Custom Metal Tube Manufacturing CNC Tube Laser Cutting Service
Tube Laser Cutting
Tube laser cutting is the fastest and most cost-effective way to cut different profiles including round, square and oval tubes. Accuracy and repeatability are suitable for making simple holes as well as complex cuts.
We have already discussed the principles of pipe cutting engineering. One of these is the "normal cut" rule, which means that your 3D model should only include cuts that are perpendicular to the metal surface. Although it is the preferred design, various cuts can be performed. The 'cut to normal' design just has more capable producers, which means it's possible to get a lower price
Specification
| drawing format | CAD , JPEG , PDF , AI , PSD , DWG , DXF , IGS , STEP |
| Tube cutting maximum diameter | Pipe diameter 500mm |
| Steel grade | Carbon Steel , Alloy Steel , Stainless Steel , 4140 , 20# , 45# , 40Cr , 20Cr etc. |
| Aluminum | AL6061 , AL6063 , AL6082 , AL7075 , AL5052 etc. |
| Stainless steel | 201SS , 301SS , 304SS , 316SS etc. |
| brass | C37700 , C28000 , C11000 , C36000 etc. |
surface treatment
| steel | galvanized , black oxide , galvanized etc. |
| Stainless Steel Parts | Polishing , Passivation , Laser Engraving , Sandblasting etc. |
| Aluminum parts | Anodizing , Sandblasting Anodizing , Color Anodizing , Drawing |
Tube Laser Cutting Advantages
Profile selection
Laser tube cutters are suitable for all kinds of profiles - from box sections to pipes and channels. But they can perform the process on a wide variety of profiles that meet maximum and minimum external dimension standards. Only flat parts are outside the scope of these machines
all materials
Low carbon steel, stainless steel, aluminum, etc. They are all welcome. Although reflective materials are more problematic for CO2 laser cutting, they are much easier to process with a fiber laser
one operation
Using this process, you can do it all in one go – cut to length and make the necessary cuts. No secondary operations or manual material removal required
High precision
Our tubular laser cutters provide extremely precise and clean cuts through small cuts. This eliminates the need for extra work on the tubes
lower cost
It is the preferred method for more complex work. The ability to produce everything at once without any additional work reduces costs. The cutting speed of the laser enables faster processing, resulting in shorter turnaround times

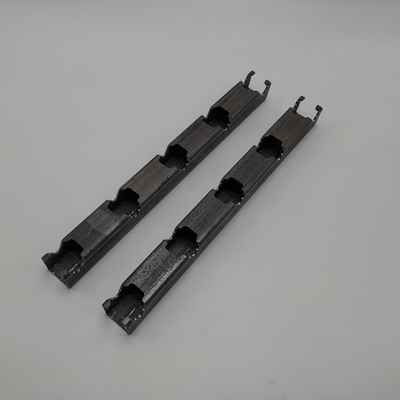

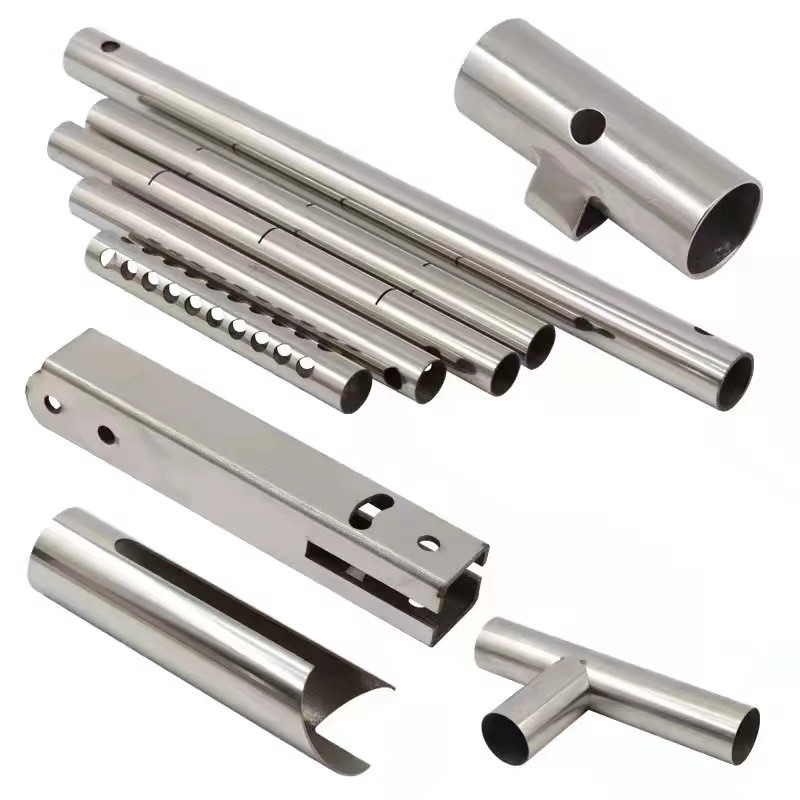

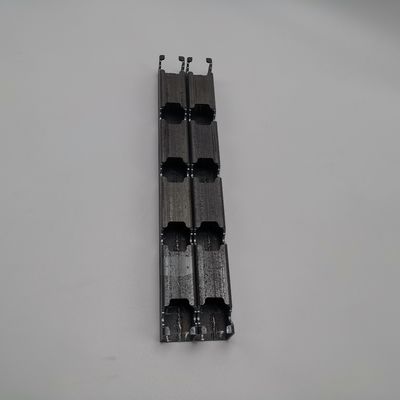

Product Image
