1000mm Rebar Embedded Steel Plate In Concrete Construction Construction Sheet Metal

Embedded Parts Service In Concrete On Construction Sites

Embedded parts

What is an embedded part? These are just the metal elements of the frame in the structure, made of angle beams, round bars or flat bars. Pre-embedded components are installed (embedded!) into the frames of various structures prior to filling with concrete so that they can be welded later when these blocks made of reinforced concrete are assembled together

Embedded parts can be divided into two types - they can be open or closed. It depends on the position of the bolt relative to the flat element. Anchors can be placed parallel, perpendicular, inclined or mixed. The rod can be threaded if necessary

Welding and press forming are produced in our factory. They may be suitable for both lightweight concrete and heavy-duty concrete structures. They will only be made of suitable metals that meet technical and standard requirements. All design specifications are strictly adhered to, welding methods are fully compliant with design standards, corrosion protection is provided, and embedded parts are secured by various methods as appropriate

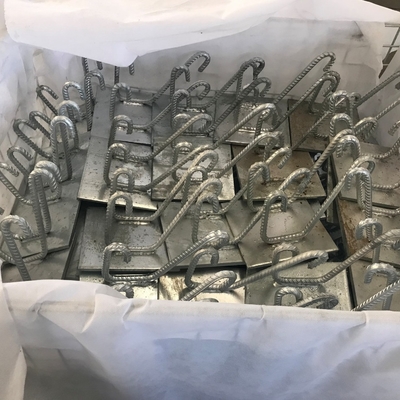

Welded embedded parts are mainly composed of bolts welded on the plate. Various attachment methods can be used depending on the nature of the forces affecting the part, the location of the part and its ease of installation within the frame

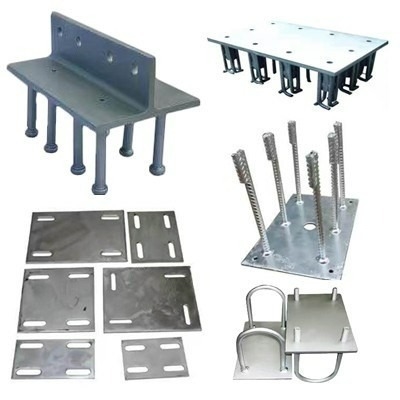

We can produce embedded parts with complex designs, including welded angles, rigid anchors, regular anchors and inclined anchors

We also produce press-formed embedded parts. They are suitable for smaller loads. It may be a reinforced concrete element of a large slab building or a component that transfers loads from wall panels to columns. The parameters of the embedded parts are in full compliance with the design specifications

Often embedded parts are not painted or coated. Only those parts may have a coating that was not cast with concrete and left out of the concrete panel for later attachment to other metalwork

product description

Product Image
