Product Details:
|
| Length: | 350mm | Width: | 300mm |
|---|---|---|---|
| Thickness: | 8mm | Material: | Mild Steel / Rebar / Round Steel |
| Craft: | Cutting / Punching / Welding | Serve: | OEM Customization |
| Size: | OEM Custom Parts | Product Name: | Embedded Parts Service In Concrete On Construction Sites |
| High Light: | 8mm embedded steel plates,Electroplating embedded steel plate 8mm,8mm Slab architectural sheet metal |
||
OEM Sheet Metal Welding Fabrication Concrete Slab Architectural Embedded Parts Cast in Slab
Embedded project
Embedded Metal - is a welded structure embedded in concrete or reinforced concrete elements, made of structural steel. Can be channel steel, angle steel, various plates, flat steel or section steel
Production of embedded metals made of various steels
Embedded Metal - is a welded structure embedded in concrete or reinforced concrete elements, made of structural steel. They are used to connect monolithic and prefab metal structures to each other or to other elements of buildings and structures
The embedded metal is either cold forged or welded using steel plates or sections. The latter includes angle steel, channel steel and various plates, flat steel or round steel
Embedded parts
Embedded parts are pre-installed (embedded) components in concealed works. They are structural members placed when the structure is poured for the lap joint of the superstructure. It is convenient to install and fix the foundation of external engineering equipment. Most inserts are made of metal
Production Process
Processing according to the drawing→measurement and positioning→bracket→place bolts, embedded parts and temporary fixation→retest and final fixation
Folding measurement positioning
Put a relative elevation point on the fixed support pile. The bottom should be welded reliably and completely separated from the formwork fixing frame and the reinforcing steel fixing frame. The fixing frame should have sufficient rigidity and stability
Folding Bolts and Temporary Fixing
After the fixed frame is supported, the bolts should be installed according to the positioning line to fix the center, and then the elevation should be adjusted, and temporary reinforcement should be carried out according to the requirements of the plan
Folding retest and final fixation
After the bolts and embedded parts are placed, the surveyor will adjust and check the bolts and embedded parts again. After checking that the specification requirements are met, the lower part of the bolt is welded firmly to the fixing frame. At the same time, the bolt fixing frame is reinforced by welding shears in the vertical and horizontal directions
product description
| model | OEM Embedded Parts |
| product name | Structural Inserts |
| application | construction, various equipment, construction, various equipment |
| color | silver / grey |
| surface treatment | Electroplating, polishing (according to customer requirements) |
| Type of manufacture | CNC machining, bending, welding, etc. |

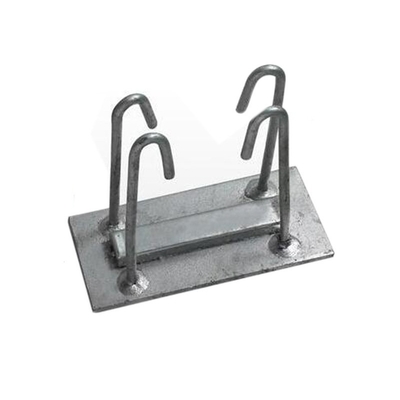

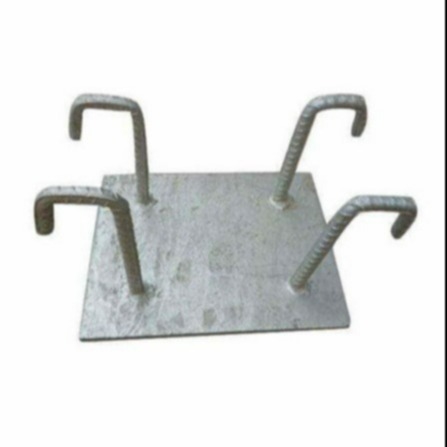

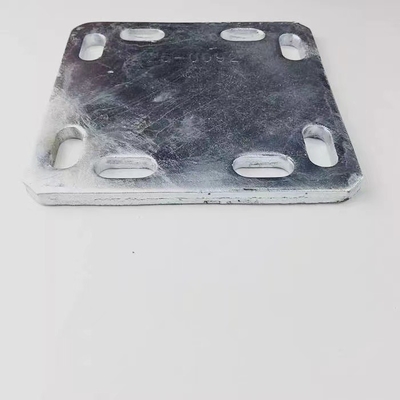

Product Image
